Kawasaki FX691V-ES00S 22 HP Electric Start Engine 15A HDAC 1-1/8" x 4-9/32" OHV – Affordable Parts & Accessories for Motor Vehicles — Shop with Confidence

Description

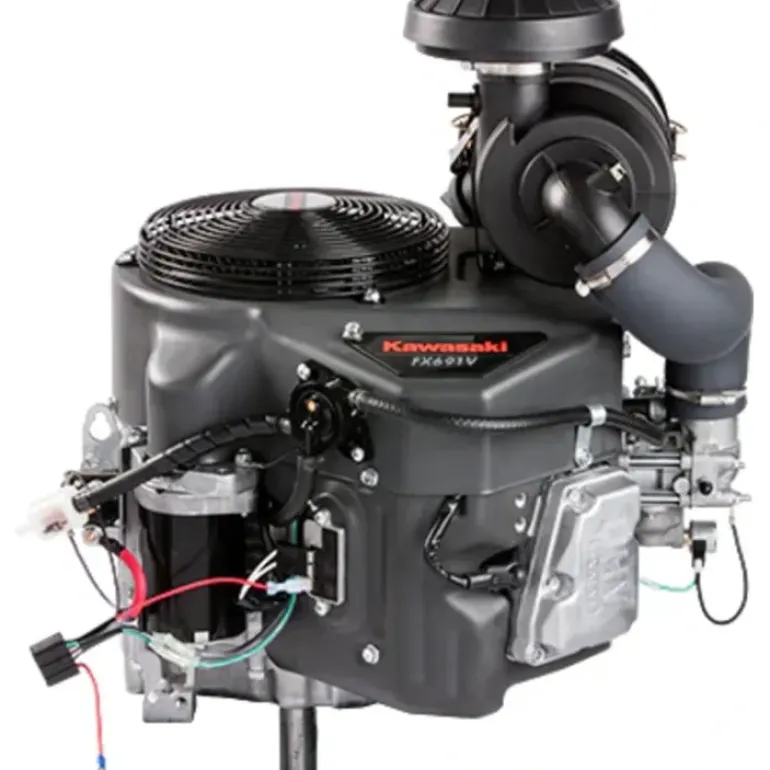

Brand New Genuine Kawasaki Air Cooled OHV 4-Cycle Twin Cylinder Vertical Gasoline Engine

Kawasaki Engine Model # FX691V-ES00S

Horsepower: 22.0

Displacement: 726cc

Starter Type: Electric Shift Starter

Crankshaft Orientation: Vertical

Crankshaft Type: Keyed – Straight

Crankshaft Size: 1-1/8 Diameter x 4-9/32 Length

Crankshaft End Tapped Size: 7/16  20 Drilled and Tapped

Crankshaft Keyway Width: 1/4″

Charging Coil: 15 AMP

Muffler: Muffler Kits Available- NOT Included (Purchase Separately if Needed)

Fuel Tank: Not Included

Air Filtration: Heavy Duty Multi-Stage Canister Air Filter

Cylinders: 2

Oil Capacity w/Filter: 2.2 qt

Max RPM: 3,600

Bolt Pattern: 4 Bolt

Bore/Stroke: 3.1 x 3.0 in

Compression Ratio: 8.2:1

Maximum Torque: 39.4 ft lbs (53.4 N-m) at 2,200 RPM

Fuel: Unleaded Gas, 86 Octane or Higher

Oil System: Pressurized with Oil Filter

Oil Cooler: High Efficiency

Engine Cooling Type: Forced Air

Warranty: 3-Year Consumer, 3-Year Commercial

Used On: Toro, Exmark, Scag, BobCat, Bad Boy, KMC, Ariens, Excel, MTD, Dixie Chopper, Husqvarna and Many Others

Direct Replacement Upgrade for FX651V & FS651V

Mechanical Governor

Electronic Spark Ignition

Automatic Compression Release

Rotating Metal Grass Chopper Screen

Metal Engine Cover with Integrated Clean Out Ports

Heavy Duty Shift Type Starter

Cast-Iron Cylinder Liners

Dry Weight: 101.4 lbs (46.0 kg)
