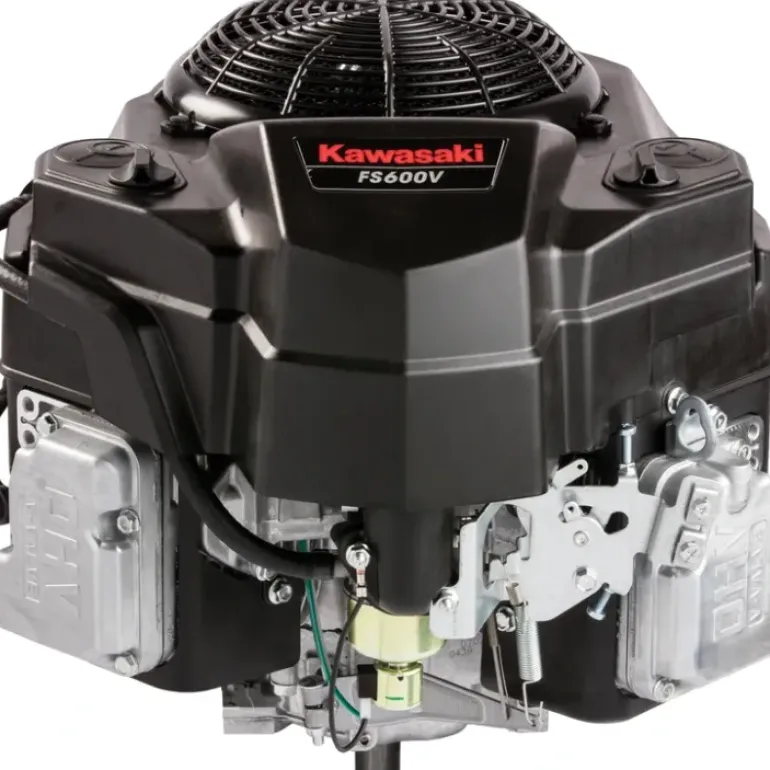

Kawasaki FS600V-FS01S 18.5 HP Recoil Start 1" x 3-5/32" V-Twin OHV Engine – Affordable Parts & Accessories for Motor Vehicles — Shop with Confidence

Description

Brand New Genuine Kawasaki Air Cooled OHV 4-Cycle Twin Cylinder Vertical Gasoline Engine

Kawasaki Engine Model # FS600V-FS01S

Horsepower: 18.5

Displacement: 603cc

Starter Type: Recoil

Crankshaft Orientation: Vertical

Crankshaft Type: Keyed – Straight

Crankshaft Size: 1 Diameter x 3-5/32 Length (25.4mm x 80mm)

Crankshaft End Tapped Size: 7/16  20 Drilled and Tapped

Crankshaft Keyway Width: 1/4″

Coil: Clutch Coil

Muffler: Muffler Kits Available (Purchase Separately if Needed)

Fuel Tank: Not Included

Air Filtration: Dual Air Filtration

Cylinders: 2

Oil Capacity w/Filter: 1.8 qt

Max RPM: 3,600

Bolt Pattern: 4 Bolt

Bore/Stroke: 2.9 x 2.8 in

Compression Ratio: 8.1:1

Maximum Torque: 32.5 ft lbs (44.1 N-m) at 2,200 RPM

Fuel: Unleaded Gas, 86 Octane or Higher

Oil System: Pressurized with Oil Filter

Oil Cooler: High Efficiency

Engine Cooling Type: Forced Air

Warranty: 3-Year Consumer, 3-Year Commercial

Used On: Toro, Exmark, Scag, Bad Boy, BobCat, KMC, Ariens, Excel, MTD, Dixie Chopper, Husqvarna and Many Others

Mechanical Governor

Integrated Clean Out Ports

Electronic Spark Ignition

Automatic Compression Release

Internally Vented Carburetor

Rotating Grass Chopper Screen

Cast-Iron Cylinder Liners

Dual Element Air Filtration System with Reinforced Primary Filter

Dimensions (L x W x H): 19.25 x 17 x 14.25 in

Dry Weight: 80.9lbs (36.7 kg)
