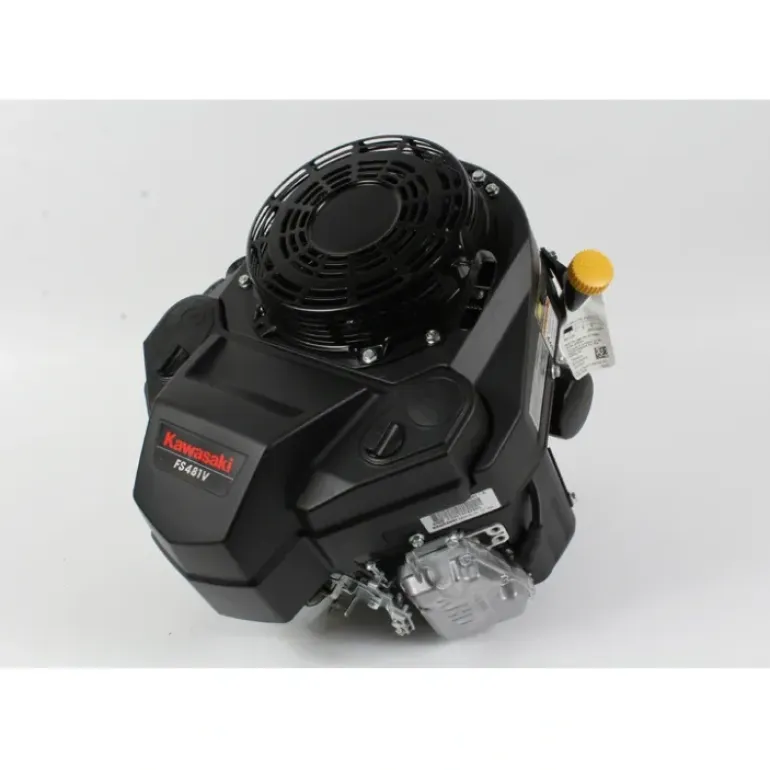

Kawasaki FS481V-FS01S 14.5 HP Recoil Start V-Twin Vertical Engine 1" x 3-5/32" – Affordable Parts & Accessories for Motor Vehicles — Shop with Confidence

Description

Brand New Genuine Kawasaki Air Cooled OHV 4-Cycle Twin Cylinder Vertical Gasoline Engine

Kawasaki Engine Model # FS481V-FS01S

Horsepower: 14.5

Displacement: 603cc

Starter Type: Recoil

Crankshaft Orientation: Vertical

Crankshaft Type: Keyed – Straight

Crankshaft Size: 1 Diameter x 3-5/32 Length (25.4mm x 80mm)

Crankshaft End Tapped Size: 7/16  20

Crankshaft Keyway Width: 1/4″

Coil: Clutch Coil

Muffler: Muffler Kits Available (Purchase Separately if Needed)

Fuel Tank: Not Included

Air Filtration: Dual Air Filtration

Cylinders: 2

Oil Capacity: 1.8 qt

Max RPM: 3,600

Carburetor Type: Internally Vented, Float Type, Single Barrel, Fixed Main Jet

Bolt Pattern: 4 Bolt

Bore/Stroke: 2.9 x 2.8 in

Compression Ratio: 8.1:1

Maximum Torque: 30.9 ft lbs (42.0 N-m) at 1,800 RPM

Fuel: Unleaded Gas, 86 Octane or Higher

Oil System: High Performance with Oil Filter

Engine Cooling Type: Forced Air

Used on Toro, Exmark, Husqvarna, Wright, World Lawn and Many Others

Mechanical Governor

Integrated Clean Out Ports

Electronic Spark Ignition

Automatic Compression Release

Internally Vented Carburetor

Rotating Grass Chopper Screen

Cast-Iron Cylinder Liners

Dual Element Air Filtration System with Reinforced Primary Filter

Dry Weight (Without Muffler) : 80.9 lbs (36.7 kg)

Warranty: 3-Year Consumer, 3-Year Commercial
